Jira Search

This fence component allows to insert a table that displays the results of a Jira query. The syntax to write the query is described in the official JQL Documentation.

Basic usage​

The basic usage of this block is to put the query directly in the fence. Example:

```jira-search
resolution = Unresolved AND assignee = currentUser() AND status = 'In Progress' order by priority DESC
```

The columns displayed in the table can be configured in the settings. See more

Advanced usage​

It is possible to describe in each jira-search fence how the search results are rendered using the following keyworkds:

KeywordDescriptionDefaultValues
typeRendering mode of the search resultsTABLETABLE or LIST
queryQuery to use with Jira to retrieve the results
limitMaximum number of items to displayUse value from settingsInteger number
columnsList of columns to render (Available columns)Use value from settingsComma separated list
accountExplicitly select an account providing the aliasTry all account by priorityAccount alias

Example:

```jira-search
type: TABLE
query: status = 'In Progress' order by priority DESC
limit: 15
columns: KEY, SUMMARY, -ASSIGNEE, -REPORTER, STATUS
account: Default
```

Standard fields​

The plugin is able to render as columns the following Jira standard fields:

KEY, SUMMARY, DESCRIPTION, TYPE, CREATED, UPDATED, REPORTER, ASSIGNEE, PRIORITY, STATUS, DUE_DATE,
RESOLUTION, RESOLUTION_DATE, PROJECT, ENVIRONMENT, LABELS, FIX_VERSIONS, COMPONENTS,
AGGREGATE_TIME_ESTIMATE, AGGREGATE_TIME_ORIGINAL_ESTIMATE, AGGREGATE_TIME_SPENT,
TIME_ESTIMATE, TIME_ORIGINAL_ESTIMATE, TIME_SPENT, AGGREGATE_PROGRESS, PROGRESS, LAST_VIEWED,
DEV_STATUS
  • Columns names are case insensitive
  • If the column starts with -, the compact mode is used

Example:

```jira-search
query: status = 'In Progress' order by priority DESC
columns: key, -key, type, -type, reporter, -reporter, created, -created
```

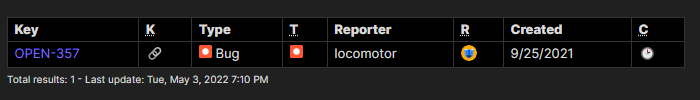

Compact Columns

Custom fields & Epic / Parent Aliases​

Jira non-standard fields (a.k.a. custom fields) can be inserted using the $ symbol, specifying either the custom field name or ID number.

Example:

```jira-search
query: status = 'In Progress' order by priority DESC
columns: key, summary, $Epic Link, $Global Rank, $12313422, -$12313499
```

Built-in Epic & Parent Aliases​

To provide universal compatibility across both Jira Cloud and Jira Server / Data Center, the plugin features smart alias resolution for Epic and Parent relationships:

AliasDescriptionResolution Strategy
$Epic Link or $Epic NameDisplays the Epic the issue belongs to as a colorized clickable pillAutomatically queries the Jira Cloud parent (if type is Epic) or Jira Server custom fields (customfield_XXXXX).
$Parent or $Parent LinkDisplays the parent issue (for subtasks or hierarchy levels)Resolves the Jira parent field and falls back to Epic links.
  • If compact mode (-$Epic Link) is used, only the Epic key is rendered in a pill badge.
  • When an Epic defines a color in Jira, the pill dynamically adopts that color.
  • If the issue is a subtask whose direct parent is inside an Epic, the plugin recursively resolves the parent hierarchy.

The special column NOTES can be used with jira-search tables to create a column that shows all the notes that start with the issue key.

Example:

```jira-search
query: status = 'In Progress' order by priority DESC
columns: key, summary, status, notes
```

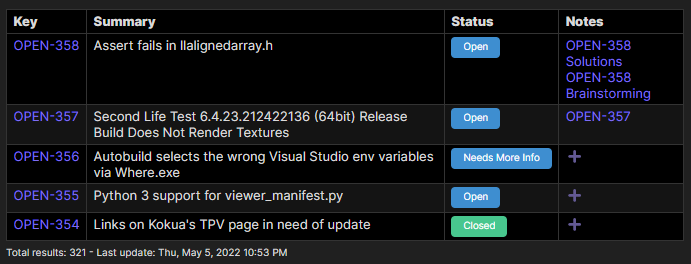

Notes Column

This column is useful to connect the issues with your notes about them. The note title must start with the issue key but it can also contains other letters after that. Examples:

AAA-123
AAA-123 User story summary
AAA-123 Custom string

If no notes are found, a ➕ button will be shown in order to allow the creation of a new note directly from this table.

Frontmatter​

You can also access the frontmatter section of the linked notes using the jsonpath syntax after the column NOTES. Example:

query: status = 'In Progress' order by priority DESC
columns: key, notes, notes.title, notes.status, notes.tags, notes.tags[0], notes..book[?(@.price<30 && @.category=="fiction")]

At the bottom of each search table you have several information:

  • Total results of the query
  • Alias of the account used
  • Last execution date
  • Refresh results button

searchFooter
